Products description

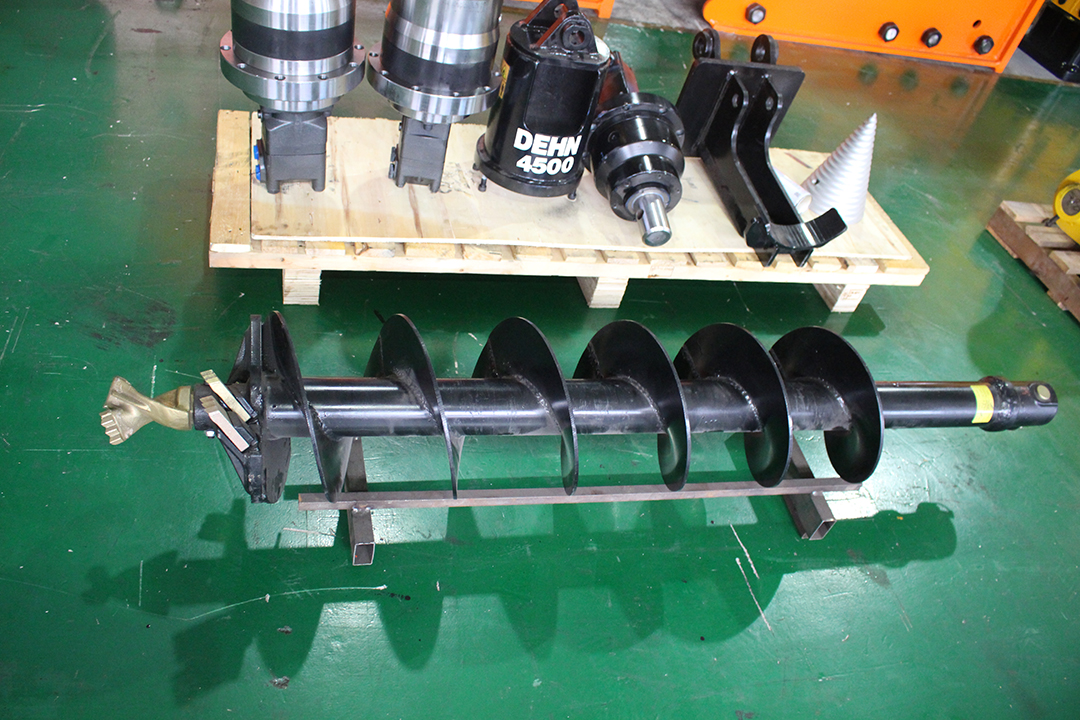

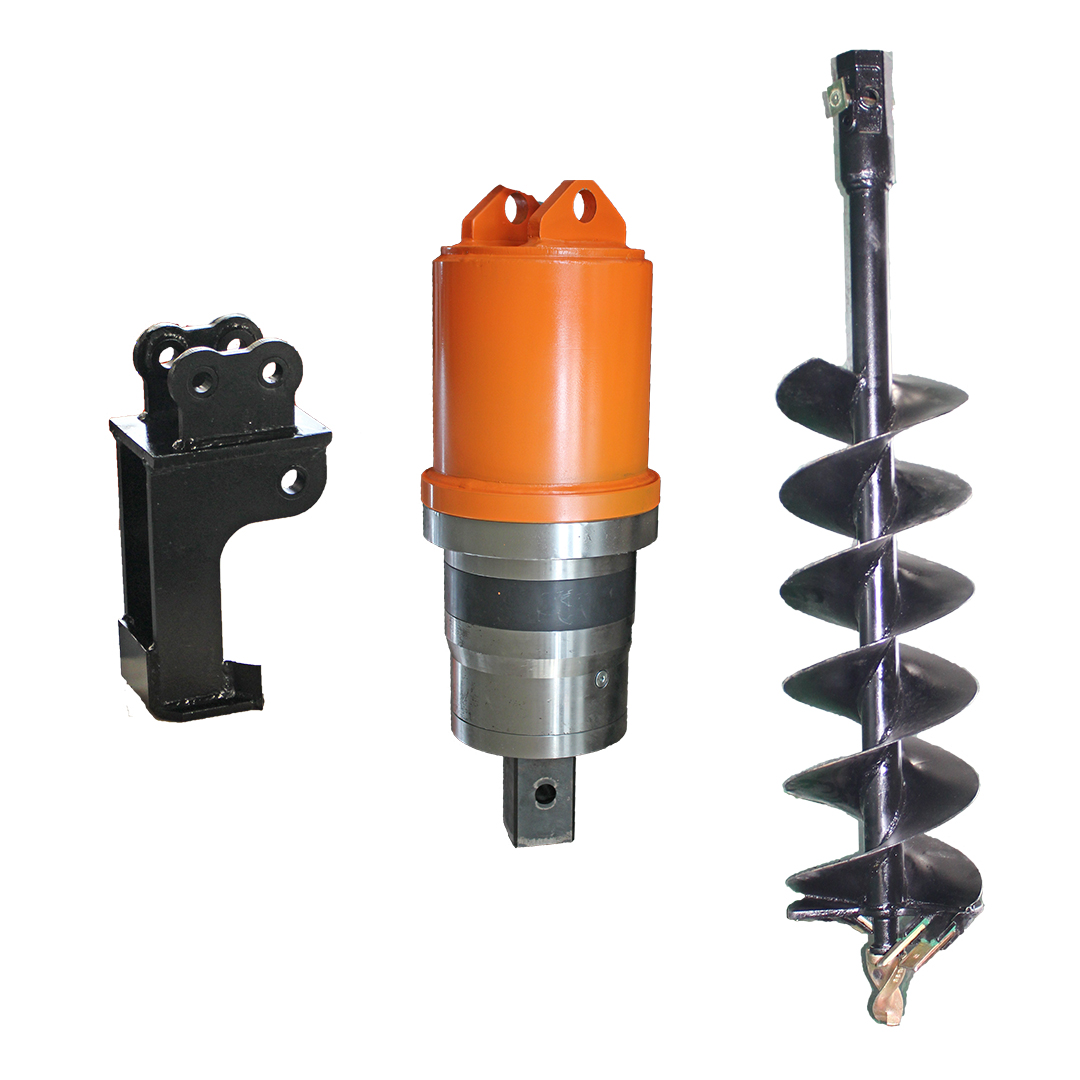

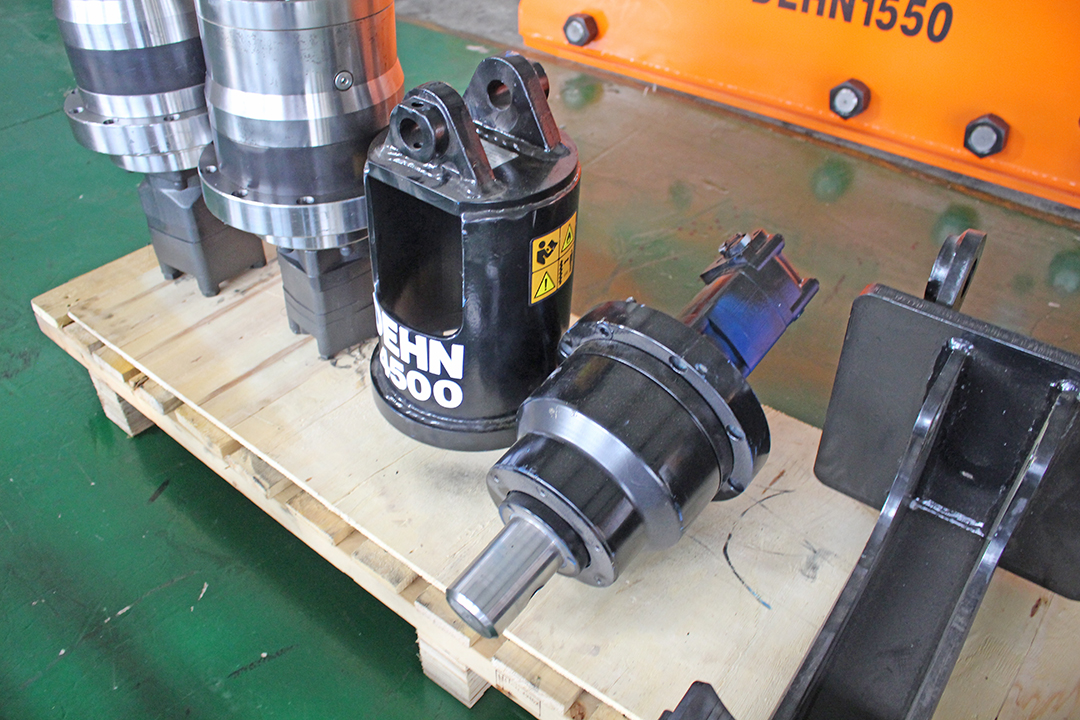

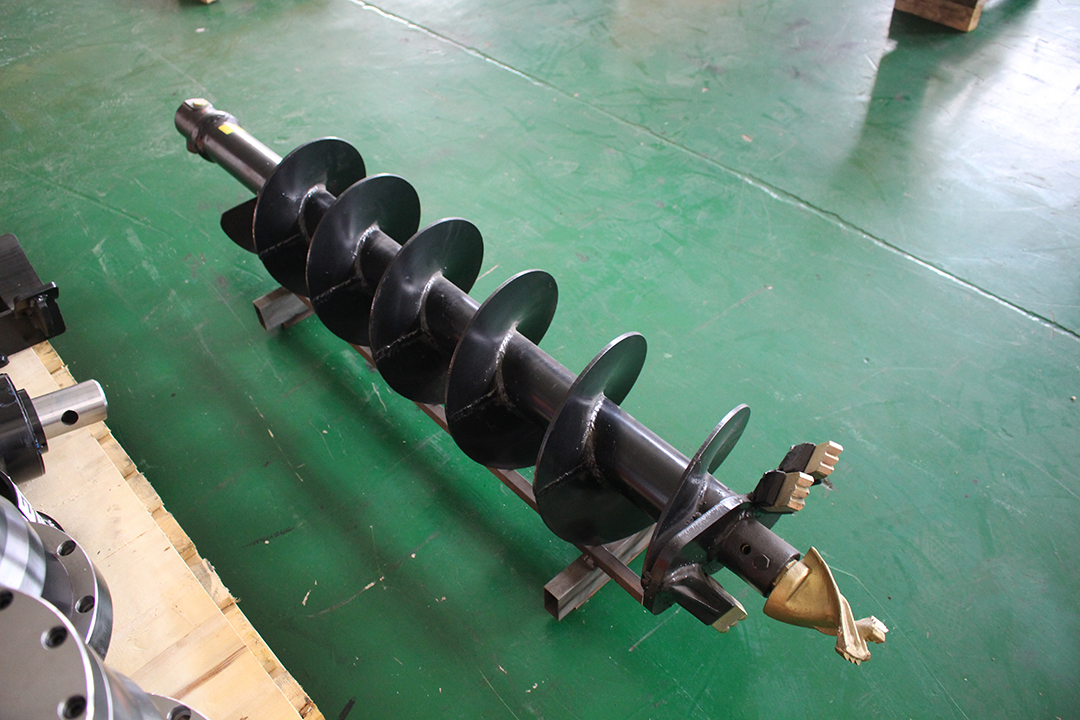

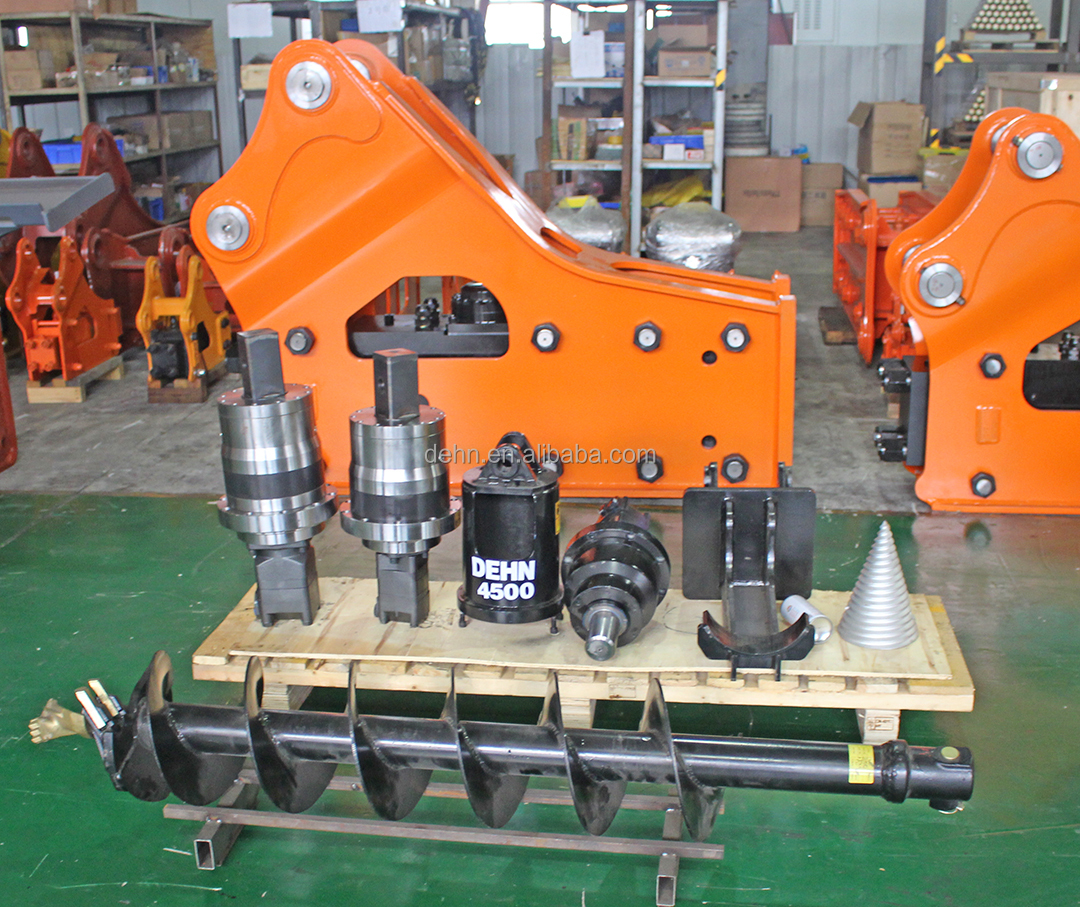

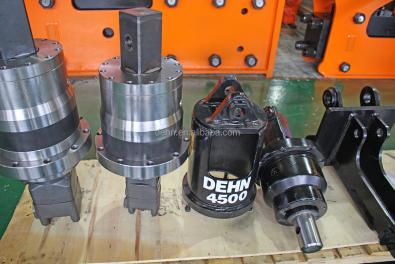

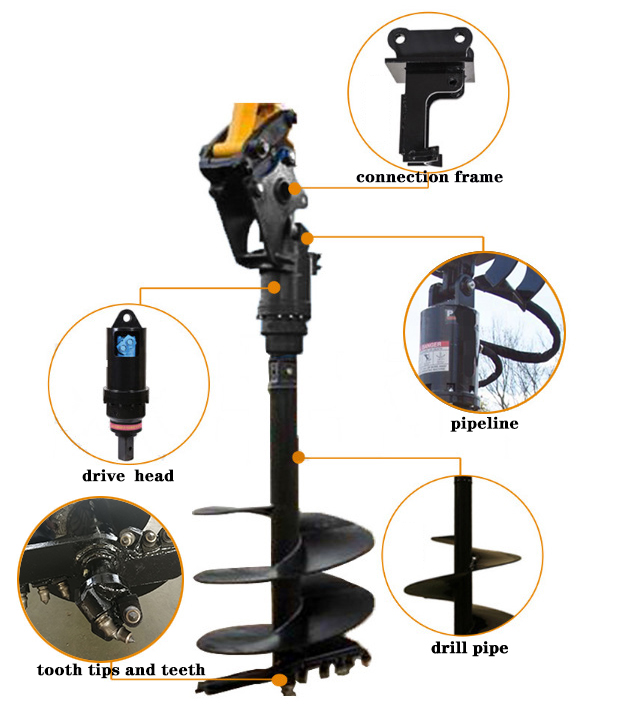

Excavator auger is mainly used for flexible and fast drilling. It is mainly used for pole drilling, tree planting and pit digging. Photovoltaic pilot hole can also be used to polish the ground nail directly. The sites are different and need fast drilling, Because the screw drill is easy to install, it can be used by connecting the pipeline of the crushing hammer, and it can quickly switch the use of excavator accessories such as the bucket and the crushing hammer, which saves time and can also achieve multi-purpose of one machine.
model
DN2000
DN3000
DN4000
DN5500
DN7000
DN8000
DN9000
applicable carrier(T)
1.5-3
2.0-4
2.5-4.5
3-6
4.5-6
5-8
3-7
max torque(Nm)
2510
3100
3760
5600
7300
8250
8760
working pressure(bar)
80-170
80-170
80-170
80-190
100-200
100-200
80-170
working oil flow(lpm)
40-75
40-75
40-75
60-95
60-95
60-95
40-75
rotation speed(r/min)
30-65
30-65
25-40
40-60
34-52
34-52
13-28
output shaft(mm)
65rd
65rd
65rd
75sq
75sq
75sq
75sq
size(mm)
Φ200*585
Φ200*585
Φ200*585
Φ270*900
Φ270*900
Φ270*900
Φ270*870
weight(kg)
55
58
60
127
130
135
122
model
DN10000
DN12000
DN15000
DN20000
DN25000
DN30000
DN40000
applicable carrier(T)
3-10
13-17
15-17
15-20
17-30
17-25
17-25
max torque(Nm)
10250
12300
15160
19200
24920
31500
39500
working pressure(bar)
80-170
100-210
100-210
110-230
110-230
100-170
100-170
working oil flow(lpm)
40-75
80-150
80-150
80-150
80-150
100-150
100-150
rotation speed(r/min)
12-23
17-40
15-33
12-25
10-20
13-17
11-15

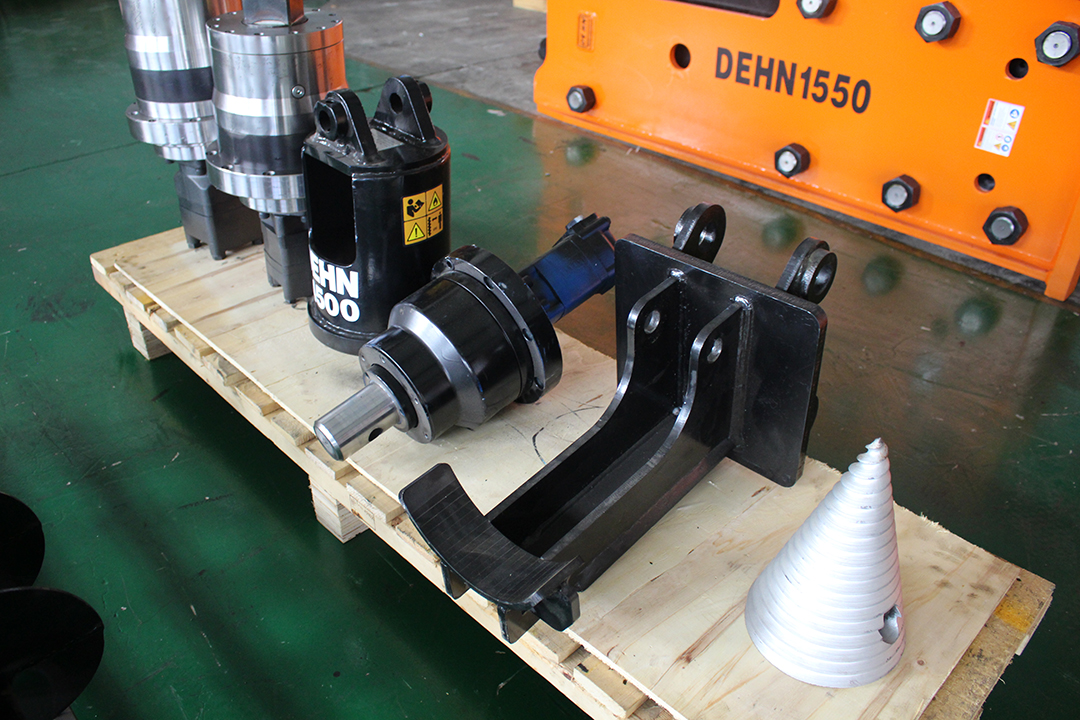

Product packaging
Mode of transport：deliver by sea/Air/multimodel transport/logistic or Express company is available
Port: QINGDAO/YANTAI

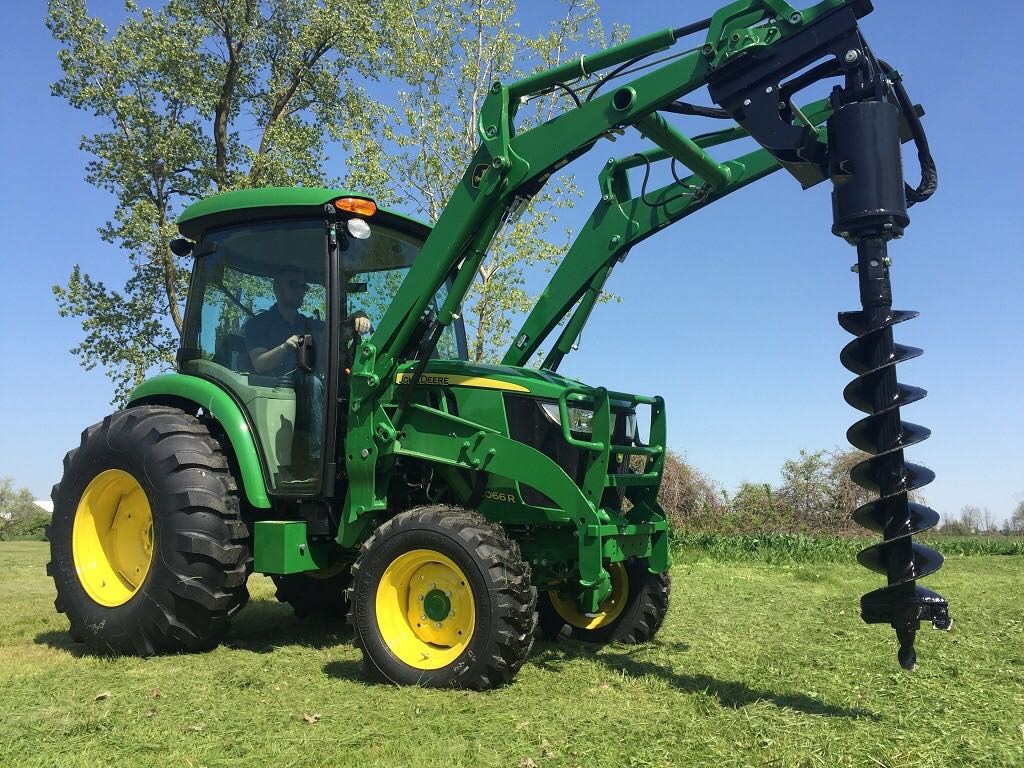

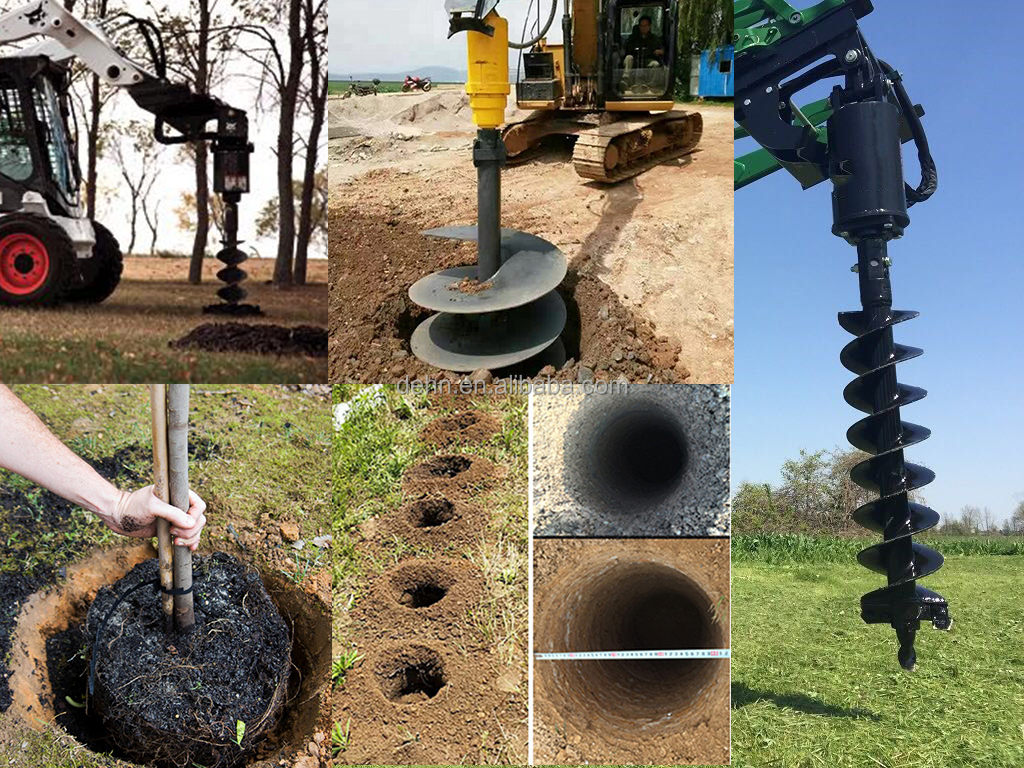

Applicable Filed

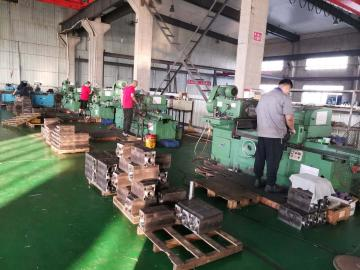

Company Profile
DEHN brand has been approved CE certificate and 4 product patents since 2010. By using the piston recoil energy, to increase performance without additional hydraulic flow input, DEHN rock breakers could achieve optimum performance at low cost, in addition to the SIMPLE body design, with only 2 moving parts, leading to lowest maintenance and repairing cost, which eventually makes your investment best valued!
FAQ
1.Is that the main body color customized?
Sure ,but we recommend you yellow, blue and orange.
2. How many days for the delivery time ?
It is about 3-7 working days after the order confirmation.
3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated,
4. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from abroad since 2010.So we have enough ability to deal with any cases. OEM certificate is
available to provided .
5.What's your advantages in the machinery manufacturing industry?
Fast delivery time ,High quality products, Best customer service ,Adopting the latest production technology.
6. Are you sure that your product will fit my excavator?
Our chisel can be adapted to different excavators. Show me your model number, and we would find you best match products.
7. How about the packing of the goods?
We follow the standard export package, wood cases, or as customers' demands
8. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
